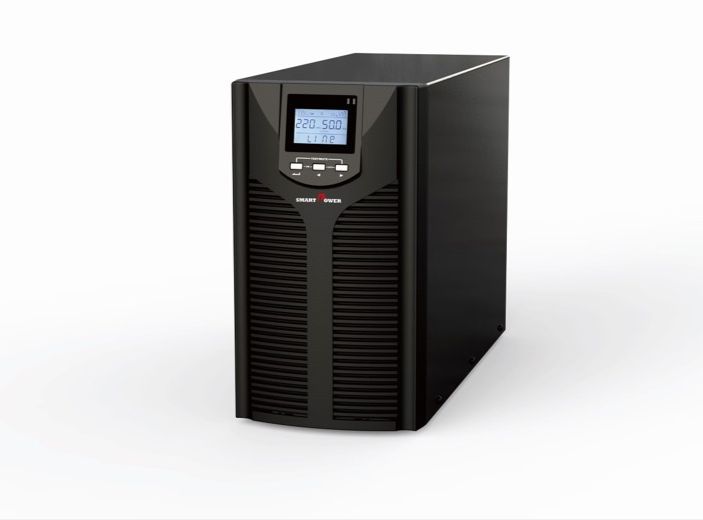

Smart Power 3000 VA Metal Short Backup UPS - SPU-3000M

Features

·         LED display

·         Microprocessor-based digital control

·         Boost and buck AVR for voltage stabilization

·         Auto sensing frequency

·         Wide input voltage range

·         Power-on self test

·         Cold start

·         Auto restart when mains power is restored

·         Intelligent battery management:

·         battery temperature compensation to extend the battery life;

·         three-stage charging to shorten recharge time

·         Short circuit, battery overcharge / over discharge, overload,

·         Protections

·         Automatic charging in OFF mode

·         Optional RS232 / USB communication port and RJ11/RJ45 protec Unattended safety shutdown: system alarm and auto Power-On/O RS232 or USB interface communicating with PC

Specifications

MODEL

SPU-3000

Capacity

SPU-3000 VA
1800 W

INPUT

Voltage

100/110/120 V: 80 150 Vac; 220/230/240 V: 162~ 295 Vac (145 295 Vac optional)

Frequency

50/60 Hz ± 10% (auto-sensing)

OUTPUT

Voltage

100/110/120 Vac ± 10% or 220/230/240 Vac ± 10%

Frequency

50/60 Hz ± 1% (auto-sensing)

Waveform

Mains mode: pure sine wave; Battery mode: simulated sine wave

Transfer time

Typical 8 ms, 10 ms max.

DC voltage

48V

Configuration

12 V/9.2 Ah x 4

Recharge time

6~8h

OTHER

Protections

Short circuit battery overcharge over discharge overload – surge

Communications

USB/RS232 (optional)

Humidity

20 90% RH @ 0 40°C (non-condensing)

Noise level

≤ 45 dB (1 m)

Metal Case

Net/Gross
weight (kg)

19.3/20.6

Dimensions
(W x D x H)
(mm)

157.5 x 452 x 211

Packaged
dimensions
(W x D x H)
(mm)

238 x 536 x 295
